Characteristics: The hose's interlayer is yarn braided which is strong pressure resistance, high and low temperature resistance; leakproofness structural design with mechanical valve that when the inner hose broken and the protecting hose is filled by water, the valve can automatically stop the water flow. It can apply in the water supply for household and industrial equipment such as washing machine and dishwasher. Color and length can be customized according to customer's specifications.

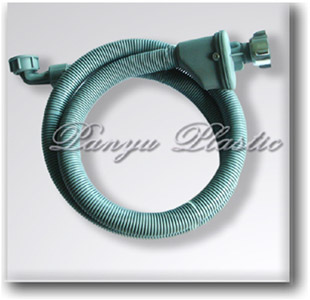

PY-JA14
Electric safety hose
PRODUCT
NAME
TYPE
MATERIAL
INNER
HOSE ID/OD
Protecting
hose ID/OD)
Connector's
thread
Length
Electric safety hose)
PY-JA15/PY-JA16
PVC、PP、PA6
Φ10/Φ16
Φ20.3/Φ25
G3/4
1500、1700、2120
Burst
pressure)
Working
pressure
Voltage
Current
frequency
Electricity
Flow,
rate
Color
Certification
≥38bar
0.2゛10bar
220゛240V
50゛60HZ
6VA
4L/min
Grey
VDE certificate for PY-JA15
Characteristics: the normal operating temperature is between -20 ~ 60 ℃, above 90℃ can be normally operation in 0.6min; The inner hose's interlayer is yarn weaving so it is strong pressure resistance, high and low temperature resistance;The electromagnetic valve installed in the connector controls opening and closing of water flow so it is safe for the usage; It is applicable to water supply for household and industrial equipment such as washing machine and dishwasher. Color and size can be customized according to customer specifications.

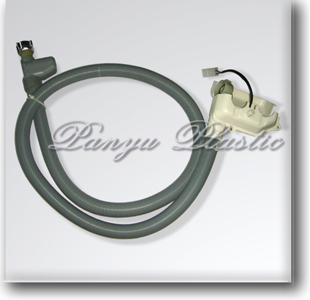

PY-JA15

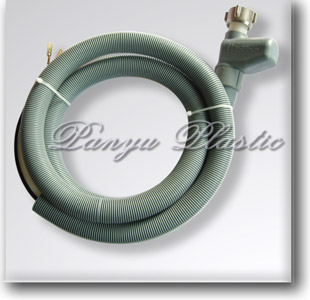

PY-JA16
