Your Position:Home >>Products > Dishwasher Spare Parts->Washer Inlet Hoses->Washer Inlet Hoses

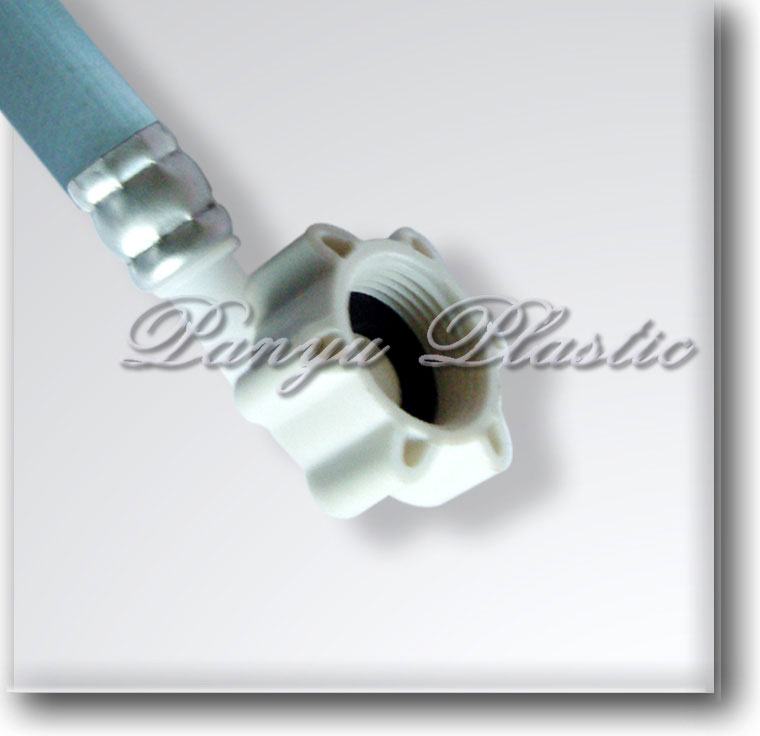

Washer Inlet Hoses
PY-J7JF
PY-J7EI
PY-J7AB
PY-J7FG
PY-J7KL
PY-J7DE
PY-J7MC

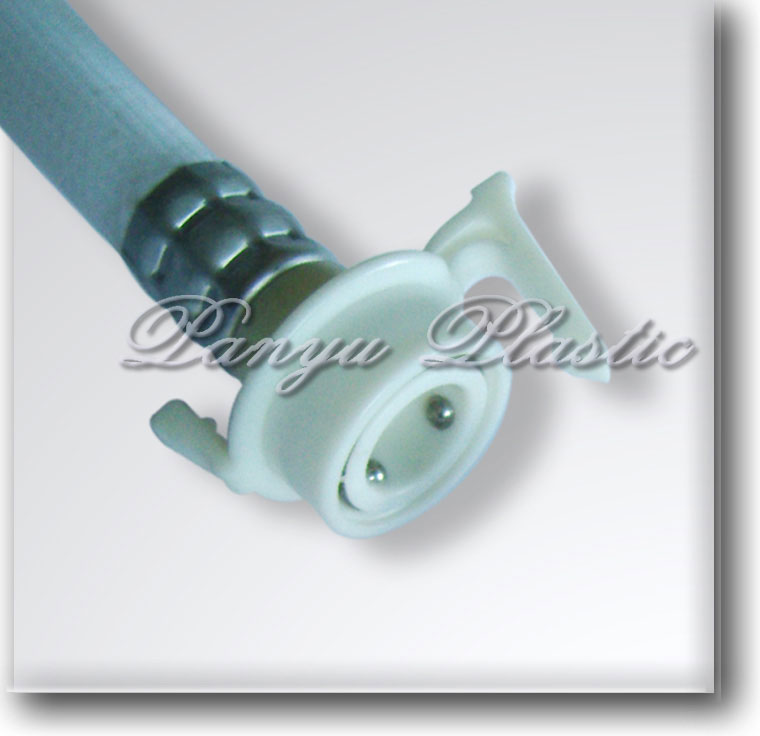

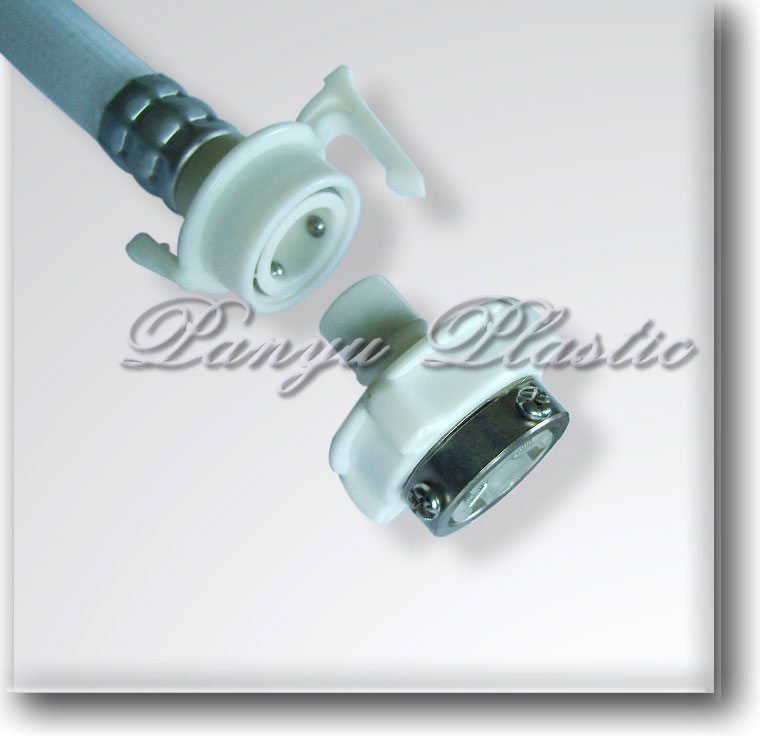

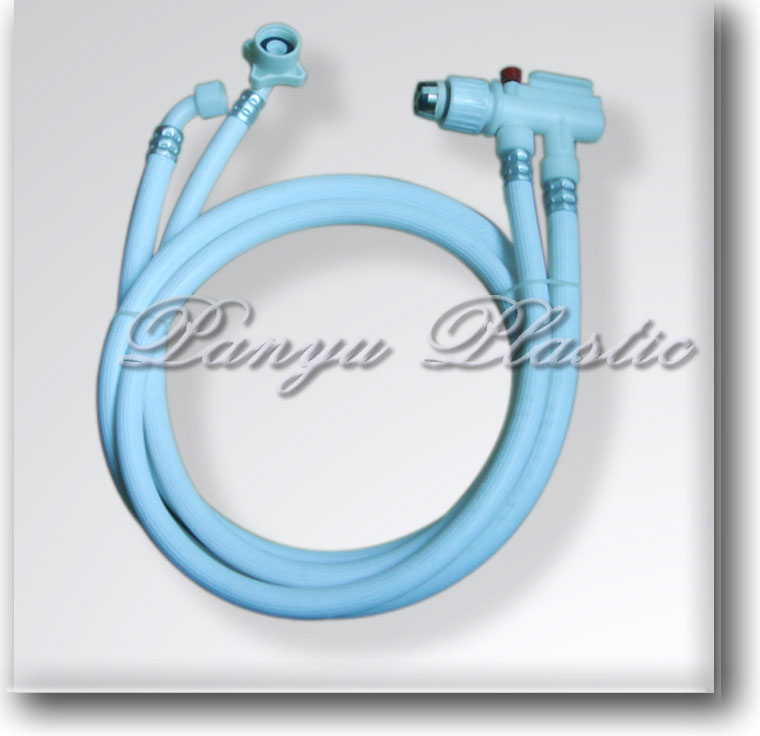

With quick connector inlet and outlet hose

Product Name

Type

Material

ID

OD

INLET HOSE'S TREAD

OUTLET HOSE'S THREAD

With quick connector inlet and outlet hose

PY-J27

POM¡¢PVC¡¢brass

Φ10

Φ16

M16*1.5(Assembly end) G3/4(External connection end)

M18*1.5(Assembly end) M20*1.5(External connection end)

Characteristics: This hose is with smooth and glossy appearance. The quick connector can be assembled with corresponding specifications hose. The quick connector inlet end has installed a filter when shut down the water fountain, water pressure can be quickly relieved. It is applicable to domestic and industrial fluid transit system.

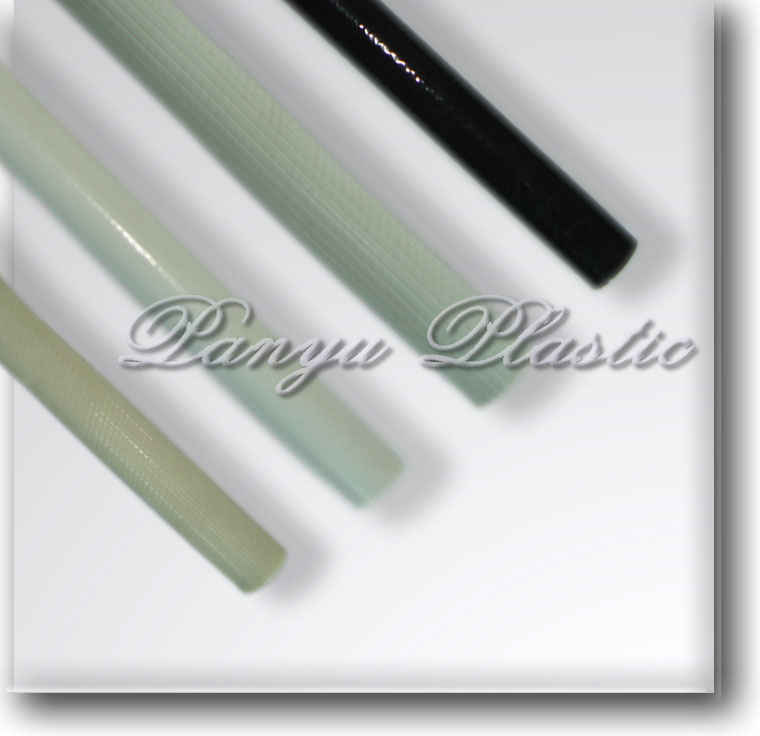

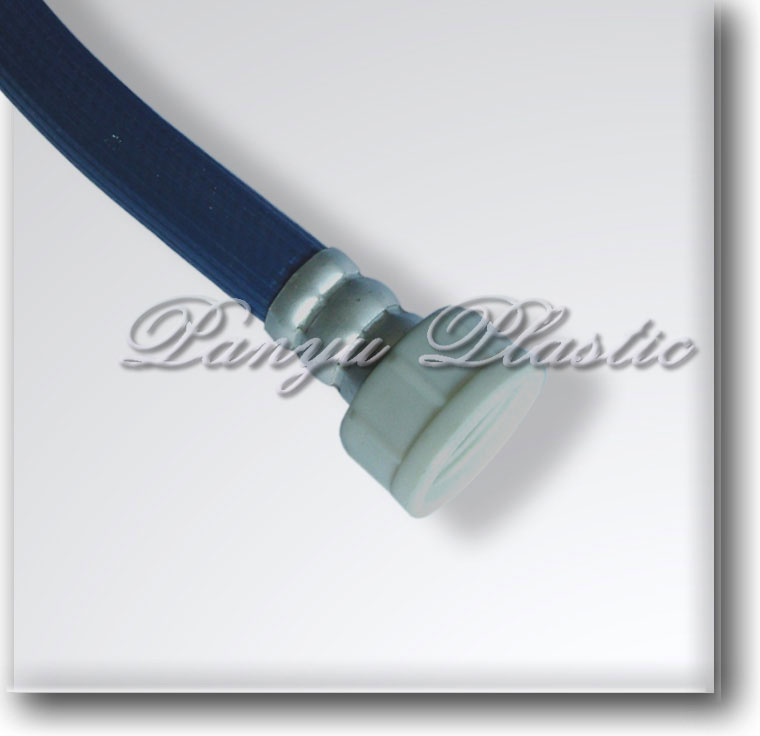

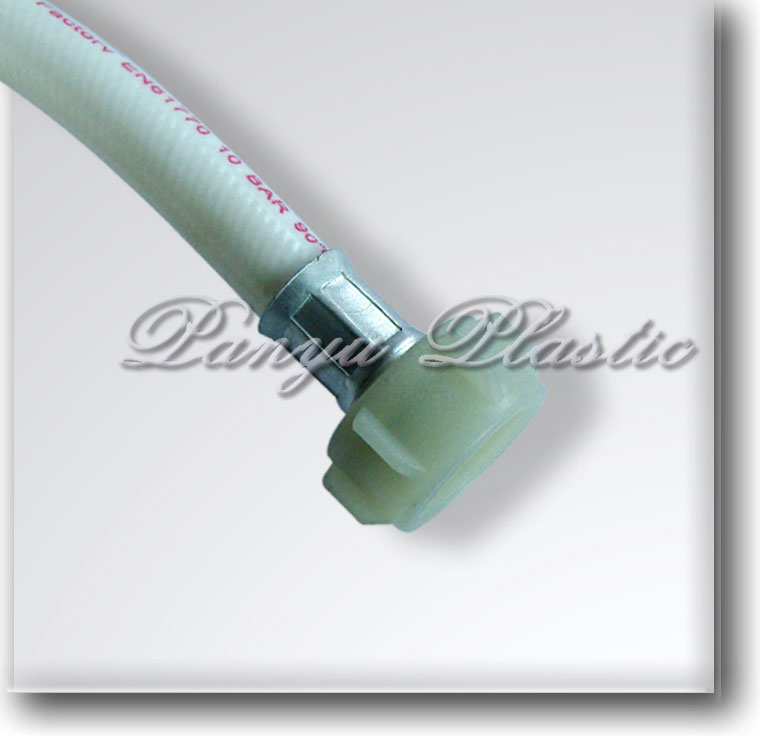

PVC inlet hoses
PRODUCT NAME TYPE MATERIAL ID OD WORKING PRESSURE COLOR
WASHING MACHINE INLET HOSEΦ6 PY-J1
PVC¡¢
Polyester yarn
Φ6 Φ10.5 10bar
White,
Milky white¡¢
yellow¡¢
grey¡¢
Black etc.
WASHING MACHINE INLET HOSEΦ8 PY-J2 Φ8 Φ12
WASHING MACHINE INLET HOSEΦ8.5 PY-J4 Φ8.5 Φ14
WASHING MACHINE INLET HOSEΦ9 PY-J5 Φ9 Φ15
WASHING MACHINE INLET HOSEΦ9.5 PY-J6 Φ9.5 Φ16
WASHING MACHINE INLET HOSEΦ10 PY-J7 Φ10 Φ16
WASHING MACHINE INLET HOSEΦ12 PY-J8 Φ12 Φ18.6
WASHING MACHINE INLET HOSEΦ16 PY-J9 Φ16 Φ24
WASHING MACHINE INLET HOSEΦ18.5 PY-J10 Φ18.5 Φ24
Characteristics: The interlayer of the hose is polyester yarn braided. It has features such as light weight, anti-aging, good corrosion resistance, high strength and good bending etc. They are applicable to domestic and industrial equipment for gas or liquid delivery. Color and size can be customized according to customer specifications.

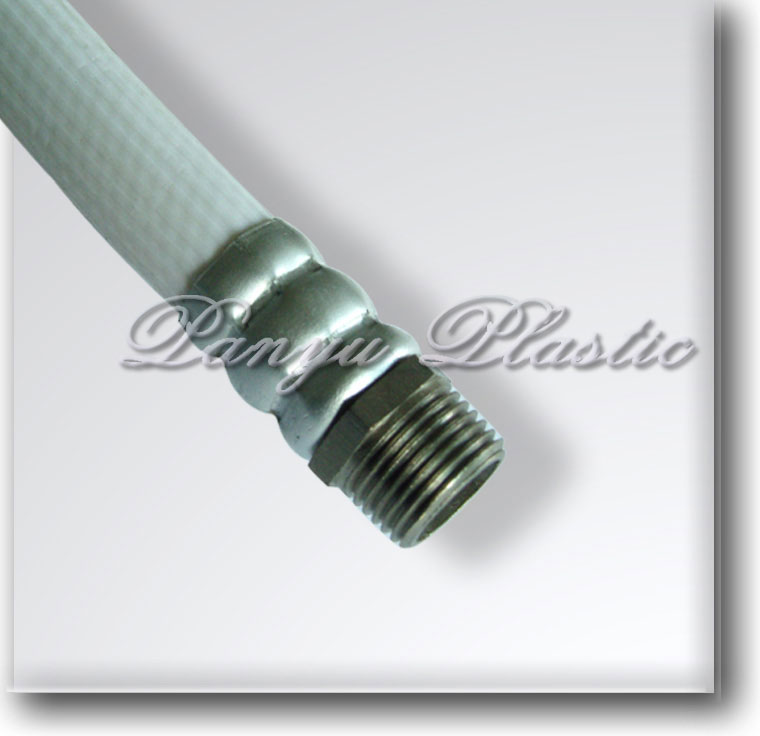

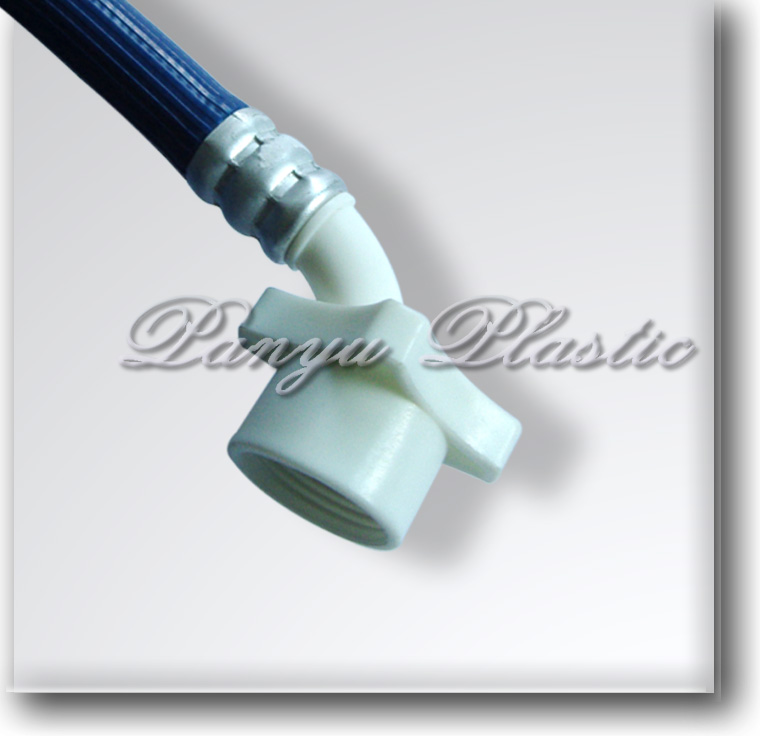

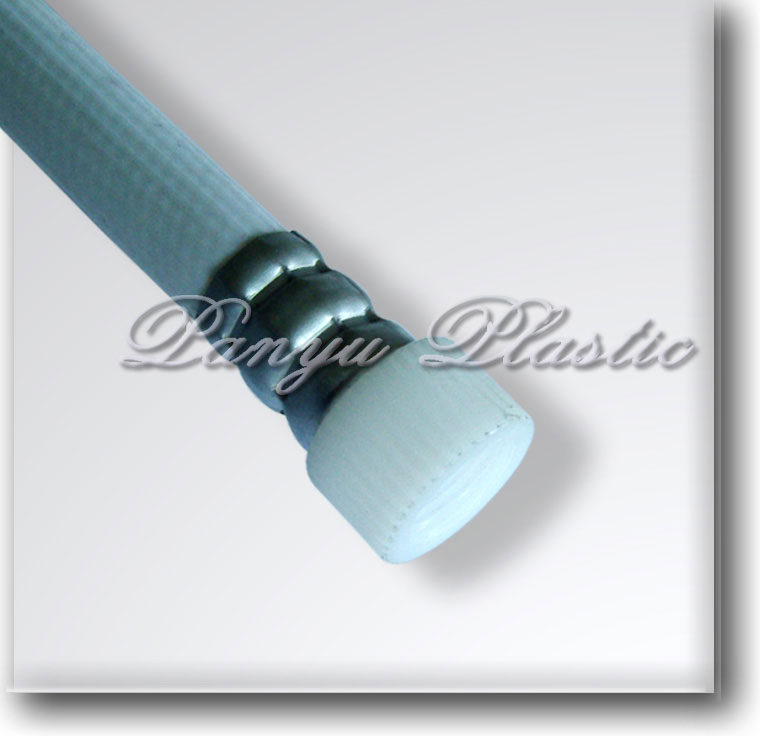

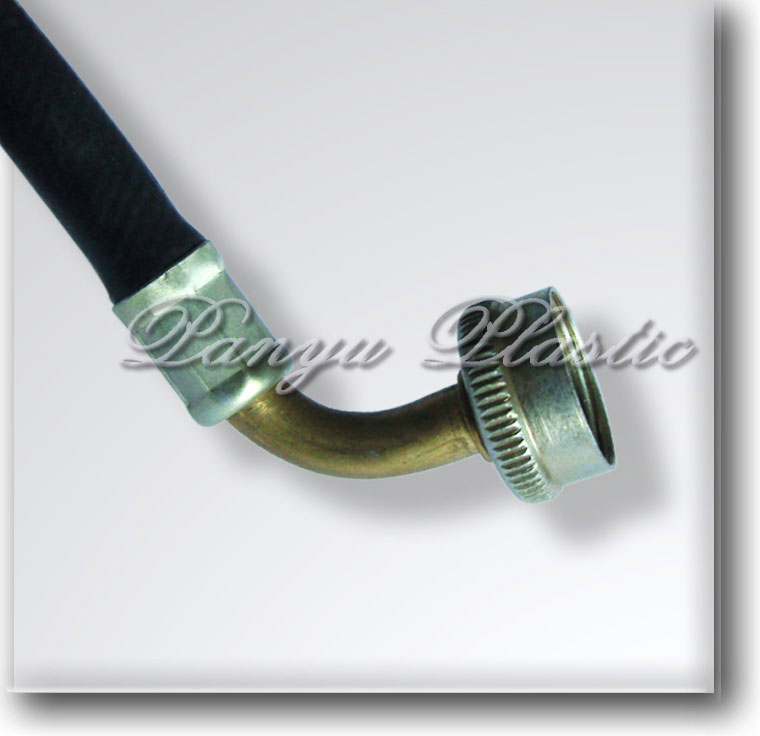

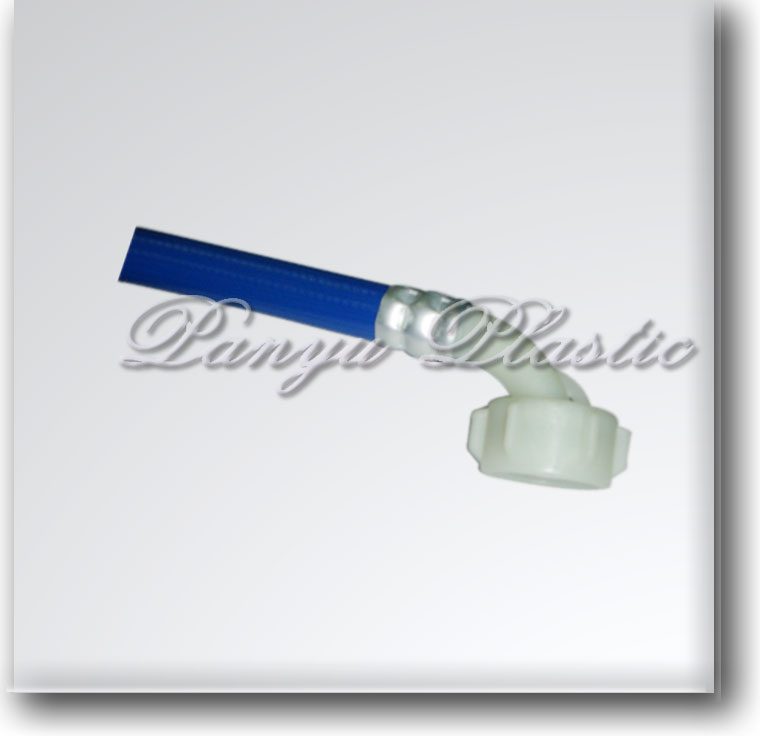

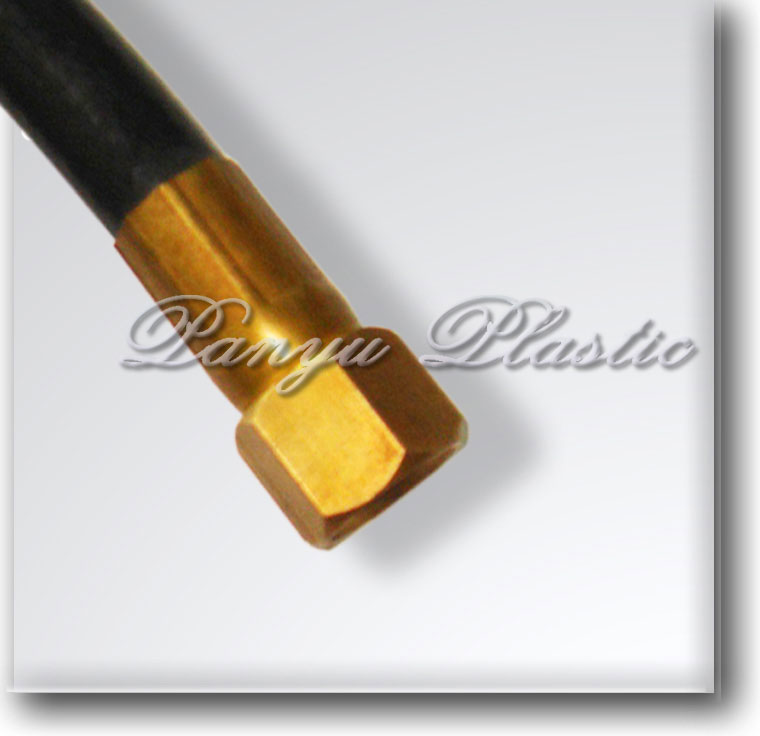

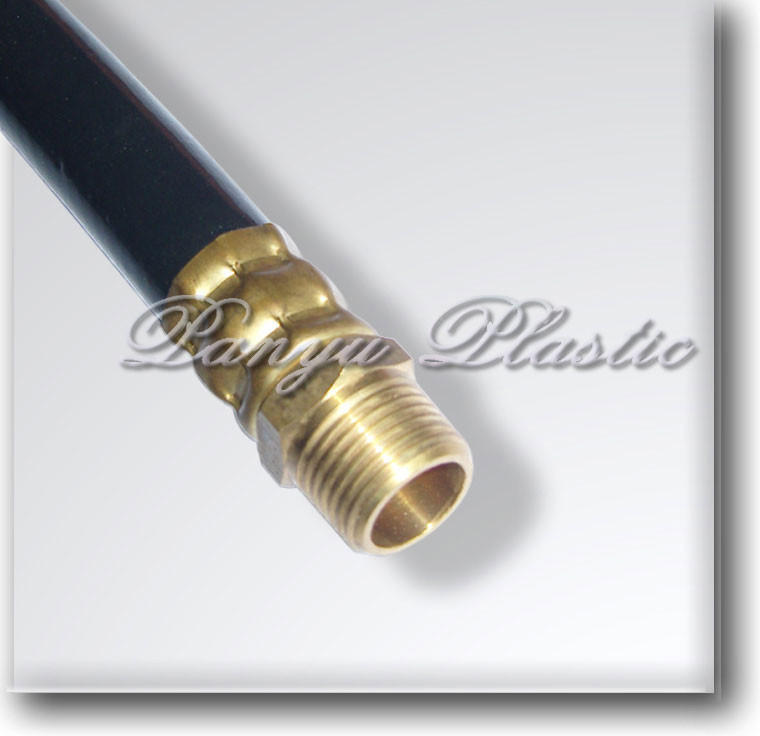

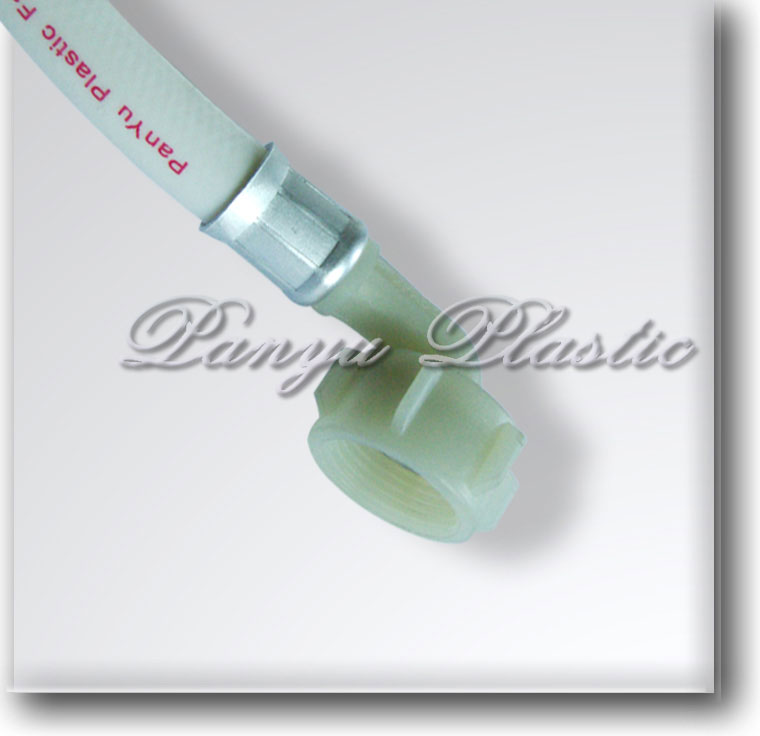

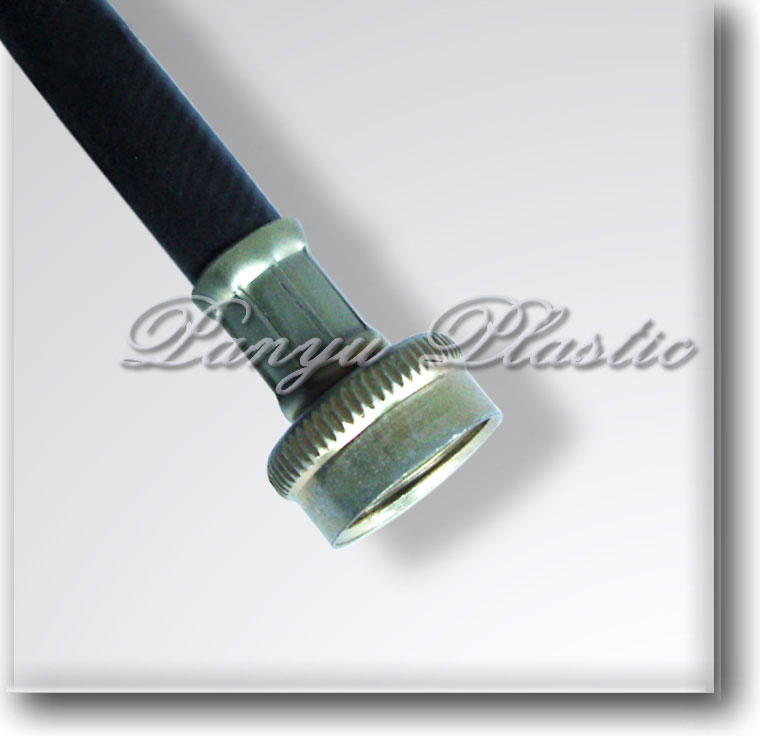

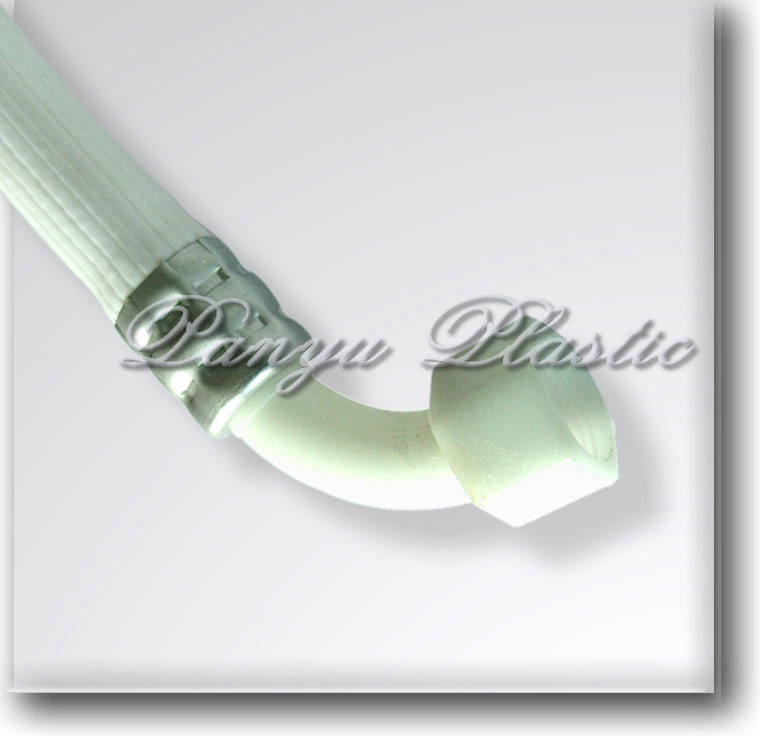

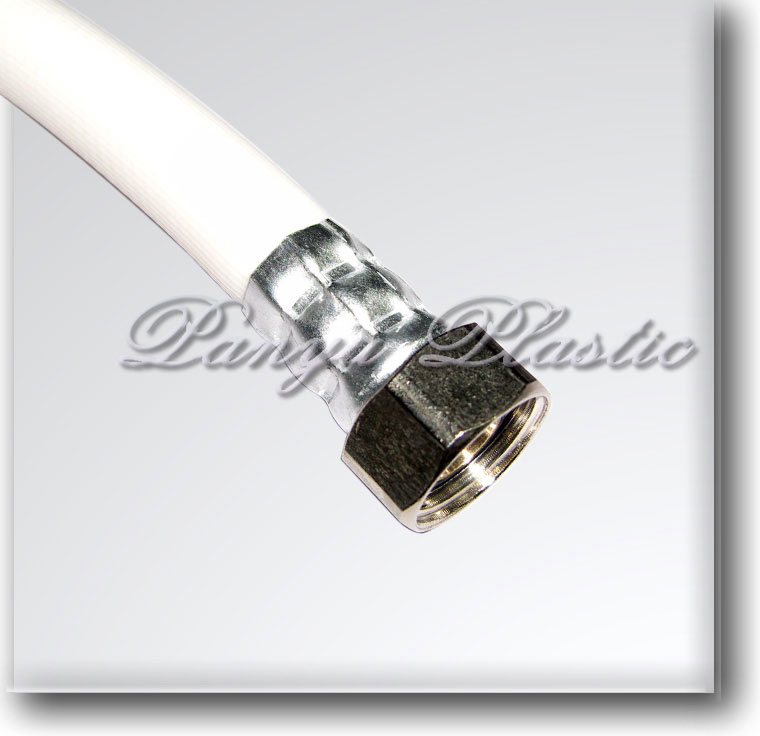

PVC Inlet Hose Connectors

Inlet hose Φ8(PY-J2)

N connector£¨G1/4£© O connector£¨G1/4£©
Inlet Hose Φ10(PY-J7)
A connector£¨G3/4£© B connector£¨G3/4£© C connector£¨1/2"£© D connector£¨≤Φ18£© E connector£¨G3/4£©
F connector£¨M18*1.5£© G connector£¨G3/8£© H connector£¨G1/2£© I connector£¨G3/4£© J connector£¨M20*1.5£©
K connector£¨M16*1.5£© L connector£¨G3/4£© M connector£¨G3/4£© P connector£¨G3/4£©

Inlet Hose Φ12(PY-J8)

C connector £¨1/2"£© D connector£¨≤Φ18£© E connector£¨G3/4£© F connector£¨M18*1.5£© I connector£¨G3/4£©
J connector£¨M20*1.5£©
Remarks£º1¡¢In the brackets, they are specifications for Joint's thread.
2¡¢The same specification hose, their two ends joints can be arbitrary selection in the table;

3¡¢Product Model is hose Model + connector type, such as type PY-J7 hose + A-joint+ B joint, then the complete Product model is PY-J7AB.

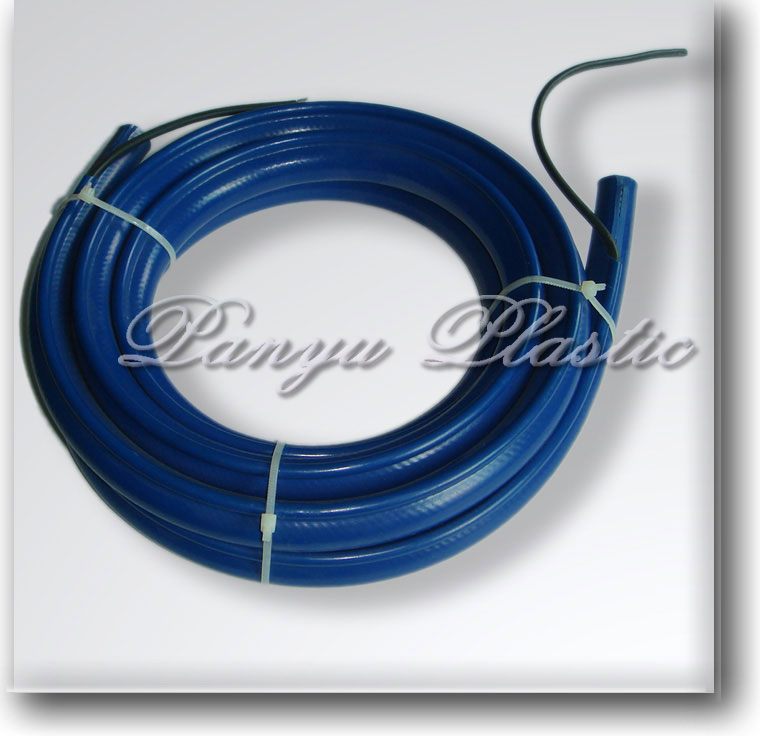

Conductive hose
Product name Type Material ID OD Wire ID Working Pressure Voltage

Conductive hose

PY-J28 PVC Φ10 Φ16 Φ4.0 10bar Low or high voltage is optional
Characteristics: The hose that its interlayer weaved by polyester yarn has features such as light weight, anti-aging, good corrosion resistance; good compressive strength and good bending etc. The wire diameter plus wire quantity and voltage are optional. It is applicable to domestic and industrial equipment. Color and size can be customized.

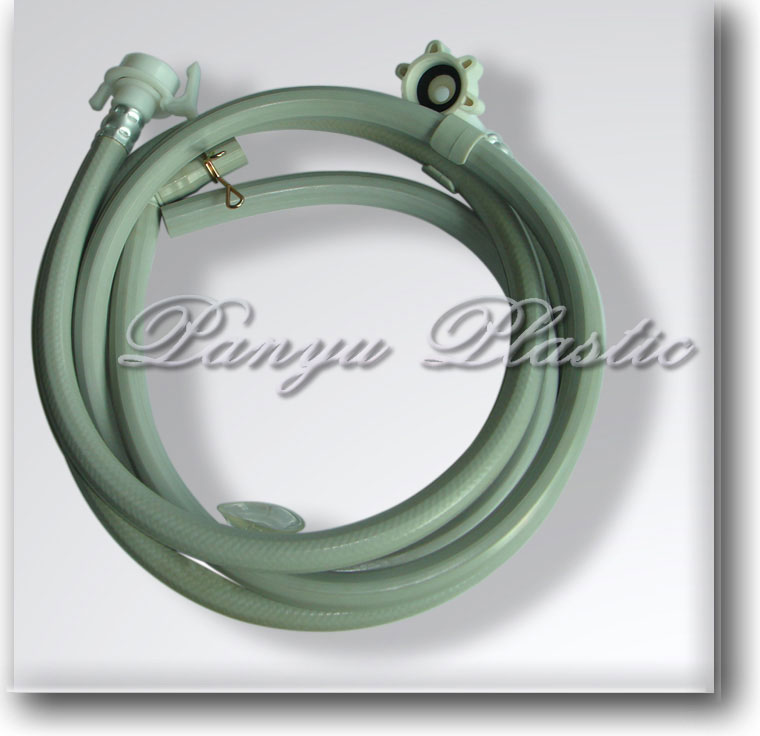

Washer inlet/outlet hose
Product name Type Material ID OD Joint thread Working pressure
Washer inlet/outlet hose PY-J29 PVC Φ12 Φ17 G3/4 0¡«5bar
Characteristics: The product is good for its appearance, health and security for usage; also it has features like anti-aging, corrosion-resistance and good bending etc. Moreover, It can be fixed on the walls and glass by its absorbing head. It is easy to use. This hose is applicable to washing machine, dishwasher, and other household water supply and drainage systems. Color and size can be customized.
If you would like this product inquiries, please click:
