| Steel wire and yarn Reinforced Hoses |
 |
| PY-X84AC |
|
 |
| PY-X84¢ó-¢ó |
|
 |
| Reinforced Hose |
|
 |
| PY-X85GG |
|
 |
| PY-X84¢òC |
|
 |
| PY-X84HC |
|
 |
| PY-X85HR |
|
 |
| PY-X88PP |
|
|
|
| Product name |
Type
|
Material |
ID |
Thickness |
Rid Diameter |
Thread Distance |
Color |
| Reinforced hoseΦ20 |
PY-X81 |
PVC¡¢polyester yarn, steel wire |
Φ20 |
2.5 |
2.0 |
9 |
Black |
| Reinforced hoseΦ29 |
PY-X82 |
Φ29 |
2.5 |
2.0 |
10 |
Black |
| Reinforced hoseΦ32 |
PY-X83 |
Φ32 |
2.5 |
2.0 |
10 |
Black |
| Reinforced hoseΦ38 |
PY-X84 |
Φ38 |
2.5 |
2.0 |
10 |
Black |
| Reinforced hoseΦ50 |
PY-X85 |
Φ50 |
2.5 |
2.0 |
10 |
Black |

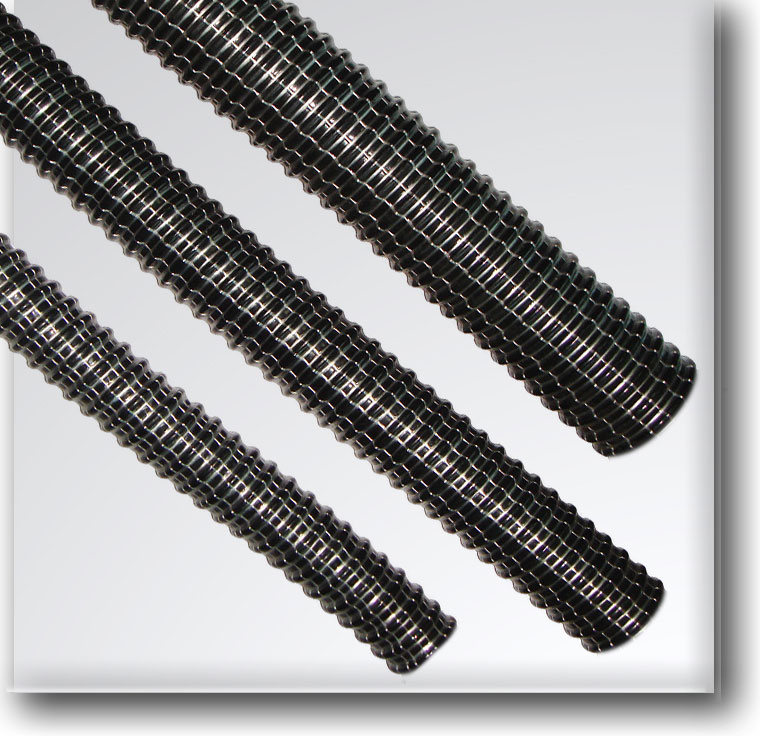

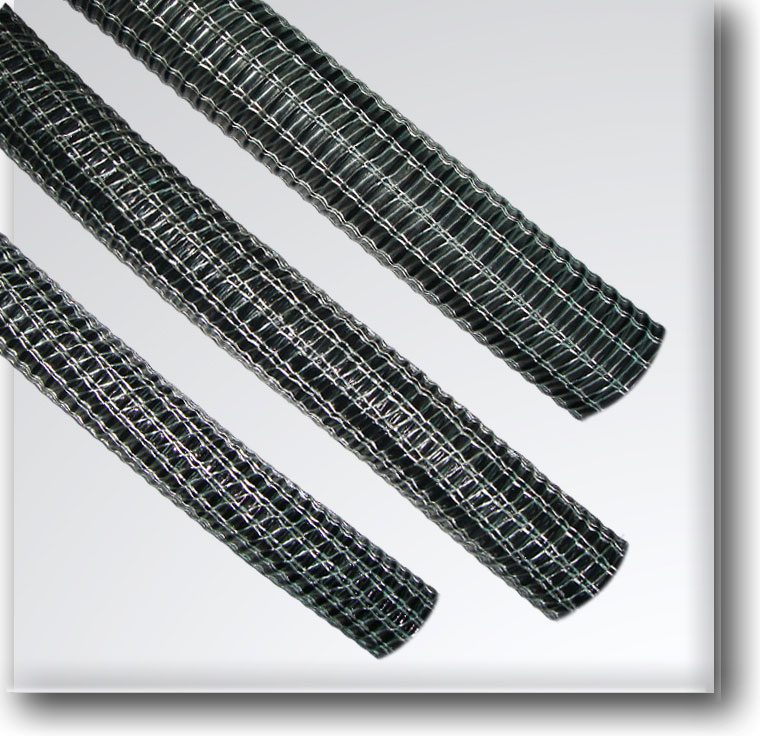

| Features: PVC-coated steel wire reinforced hoses, their inner and outer layer use black and transparent PVC material separately. Their middle layer reinforced by polyester yarn. Their working temperature can be -10 ~ +65 ℃ with light weight, good bending performance, Weather resistance and good corrosion resistance etc characteristics; color and size can be customized according to specifications; | |
 | |
| Product Name |
Type
|
Material |
ID |
Thickness |
Rib diameter |
Thread distance |
Color |
| Reinforced hoseΦ32 |
PY-X86 |
PVC¡¢polyester yarn, steel wire |
Φ32 |
2.5 |
2.0 |
10 |
Black |
| Reinforced hoseΦ38 |
PY-X87 |
Φ38 |
2.5 |
2.0 |
10 |
Black |
| Reinforced hoseΦ50 |
PY-X88 |
Φ50 |
2.5 |
2.0 |
8.5 |
Black |
| Features: PVC-coated steel wire reinforced and polyester yarn braided hoses, their inner and outer layer use black and transparent PVC material separately. Their middle layer reinforced by polyester yarn. Their working temperature can be -10 ~ +65 ℃ with features such as light weight, good bending performance, Weather resistance and good corrosion resistance etc; color and size can be customized according to specifications; | |
 | |
|

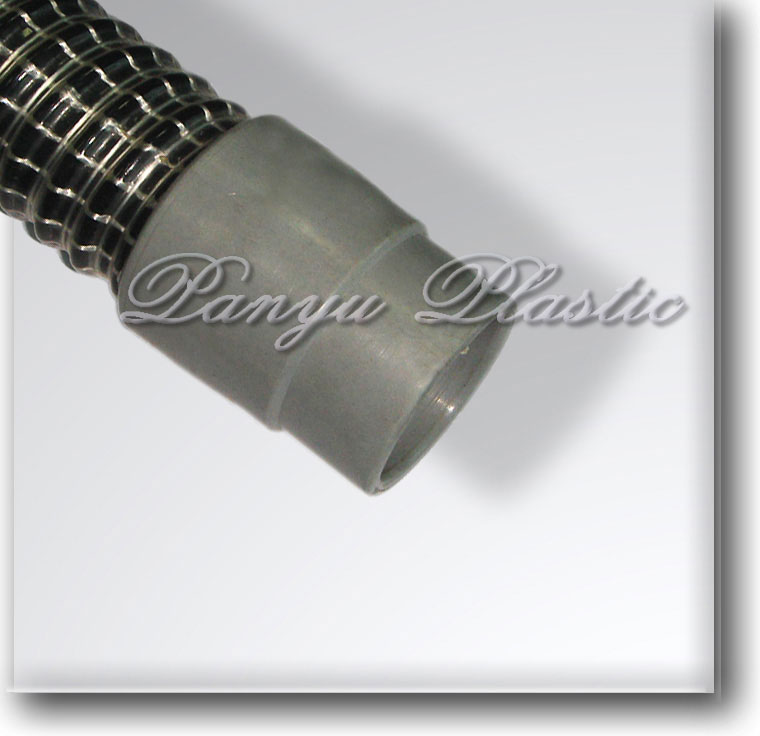

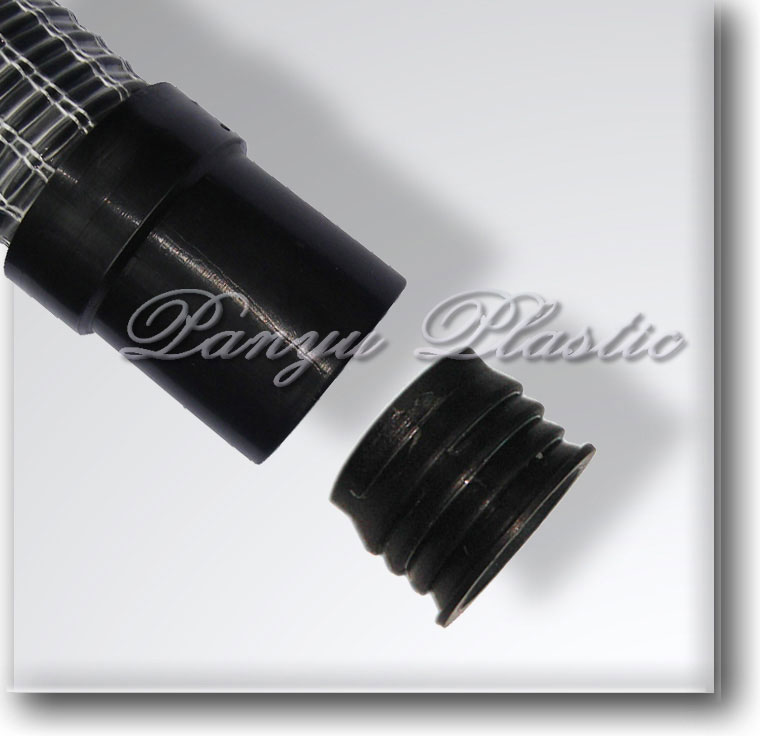

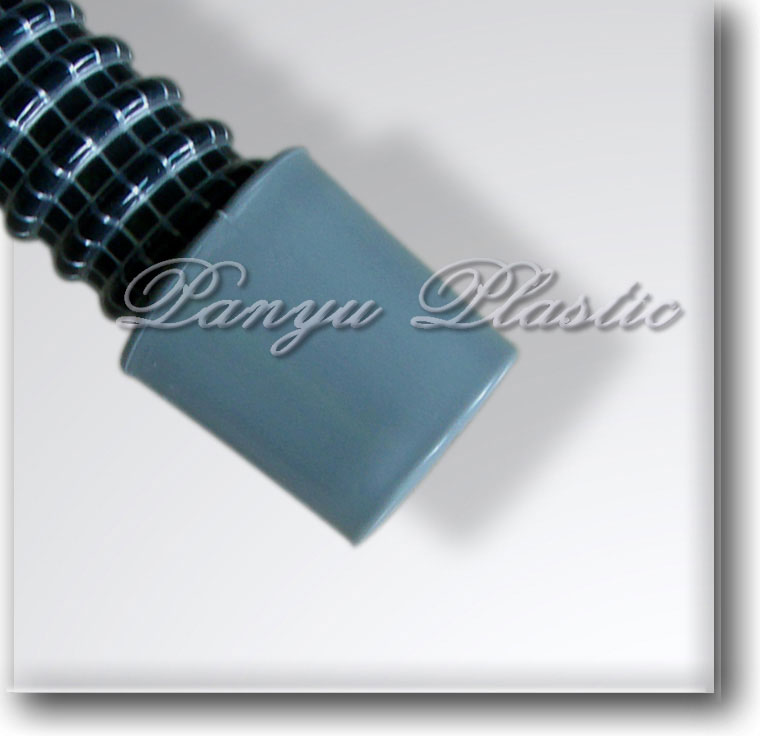

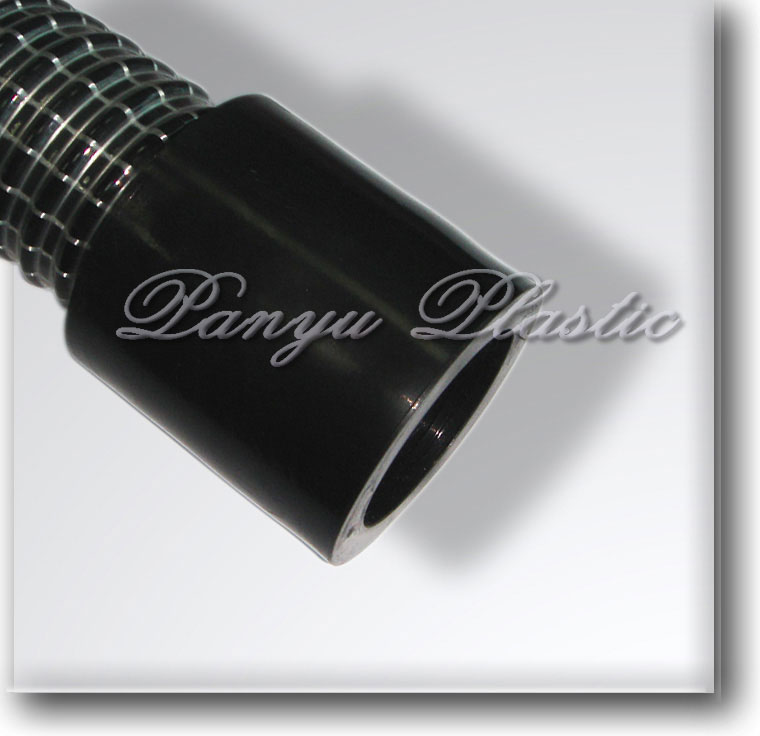

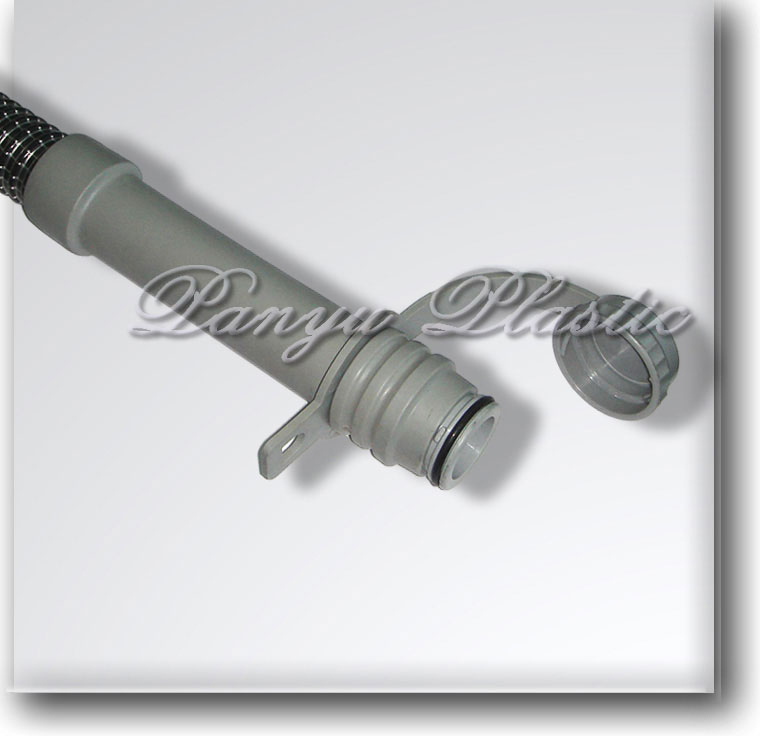

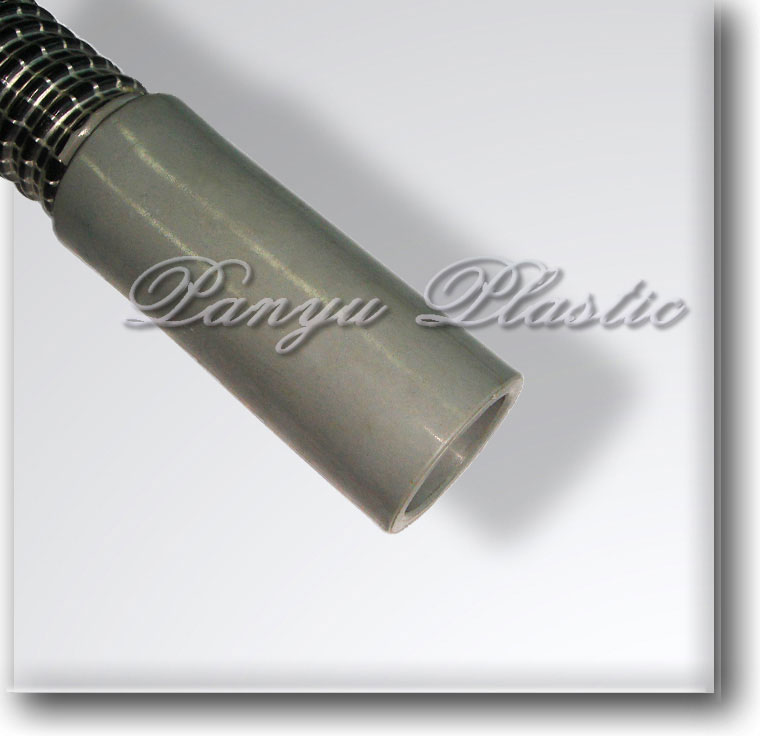

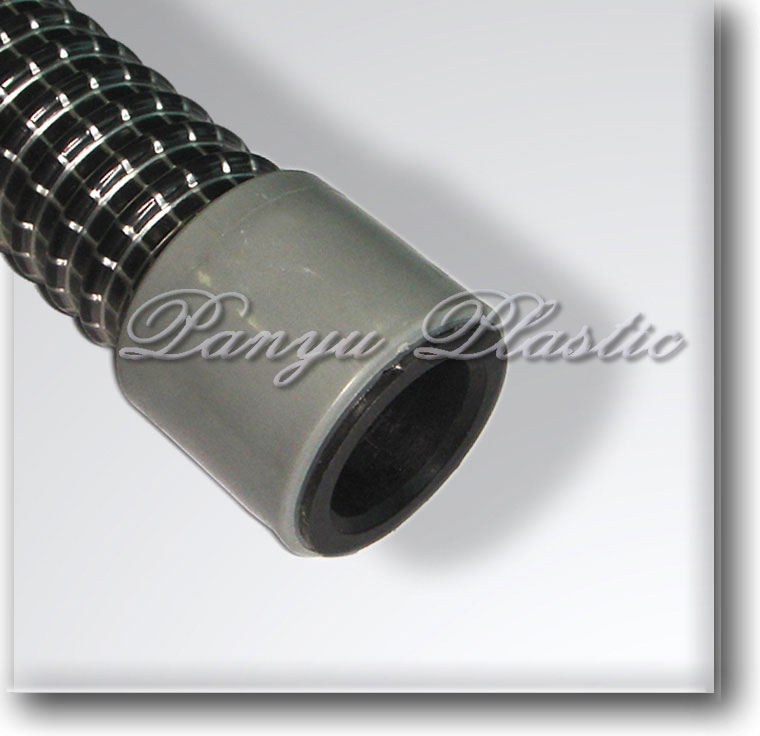

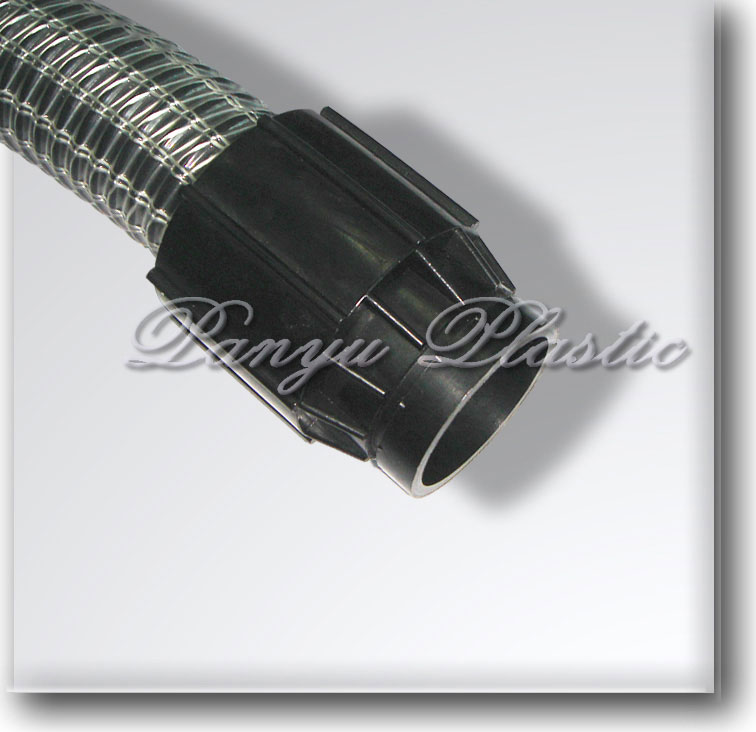

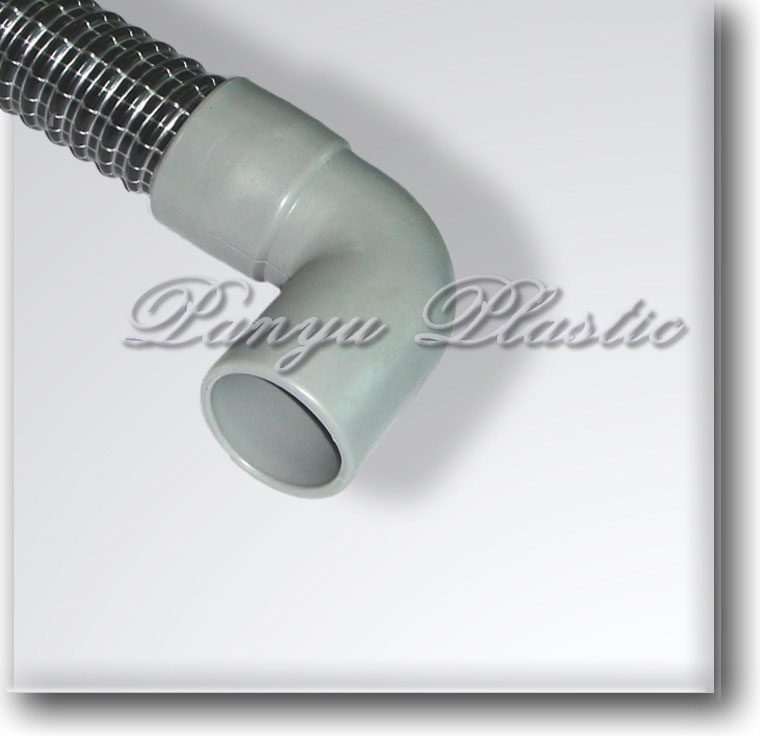

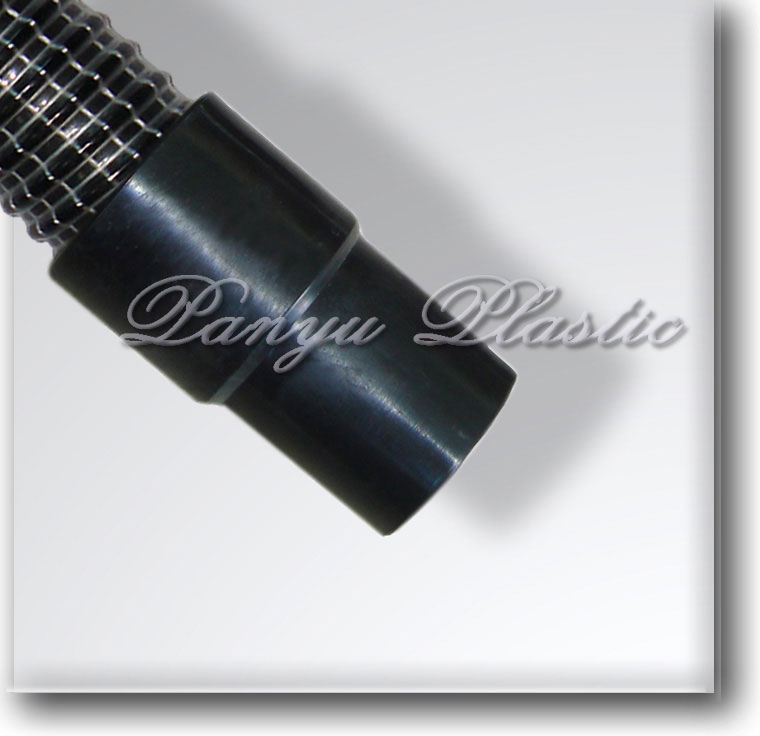

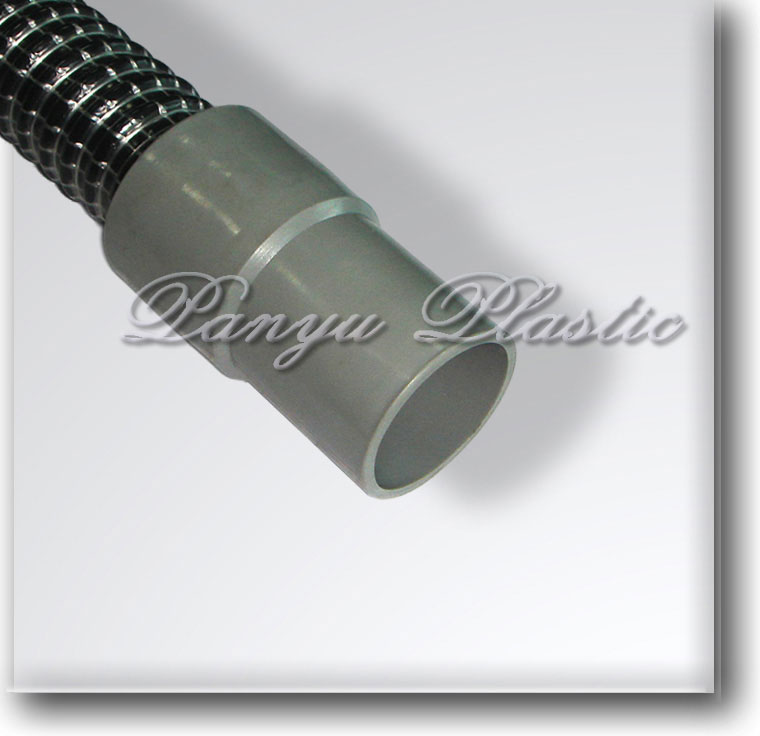

| Steel wire reinforced and yarn braided hoses'connectors | |
| Hose Diameter Φ29 |
|
|
Hose Diameter Φ32 |
|
 |
 |
|
 |
|
| F-Joint£¨Φ29/47£© |
G-Joint£¨Φ29/47£© |
|
P-Joint£¨Φ32/72£© |
|
| Hose Diameter Φ38 |
|
|
|
|
 |
 |
 |
 |
 |
| A-Joint£¨Φ31.5/44£© |
C-Joint£¨Φ38/62£© |
D-Joint£¨Φ38/120£© |
H-Joint£¨Φ32/255£© |
P-Joint£¨Φ38/73£© |
 |
 |
 |
 |
 |
| PT-Joint£¨Φ31.5/43£© |
Q-Joint£¨Φ38/92£© |
R-Joint£¨Φ50/90£© |
¢ñ-Joint£¨Φ40/86£© |
¢ò-Joint£¨Φ38/73£© |
 |
|
|
|
|
| ¢ó-Joint£¨Φ42/92.5£© |
|
|
|
|
| Hose Diameter Φ50 |
|
|
|
|
 |
 |
 |
 |
 |
| G-Joint£¨Φ50/46£© |
H-Joint£¨Φ44/255£© |
P-Joint£¨Φ50/73£© |
R-Joint£¨Φ50/90£© |
S-Joint£¨Φ50/70£© | |
| Remarks: |

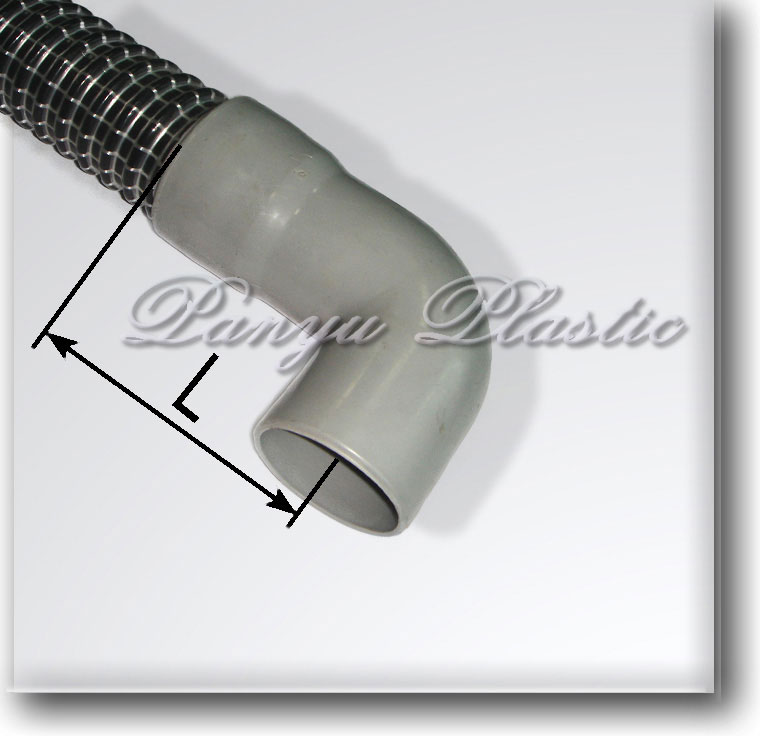

1¡¢Connector's sizes include two parts that one is ID and the other number is the connector's length.
|
| |
2¡¢The product No. is hose No. + connector's type, for example, PY84 hose + C connector+ D connector, then the complete hose No. will be PY84CD. | | |
