Conductive Vacuum Hoses

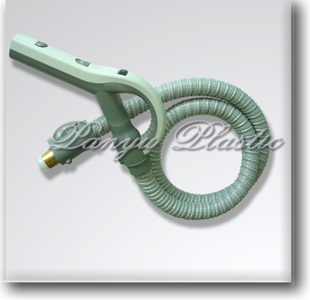

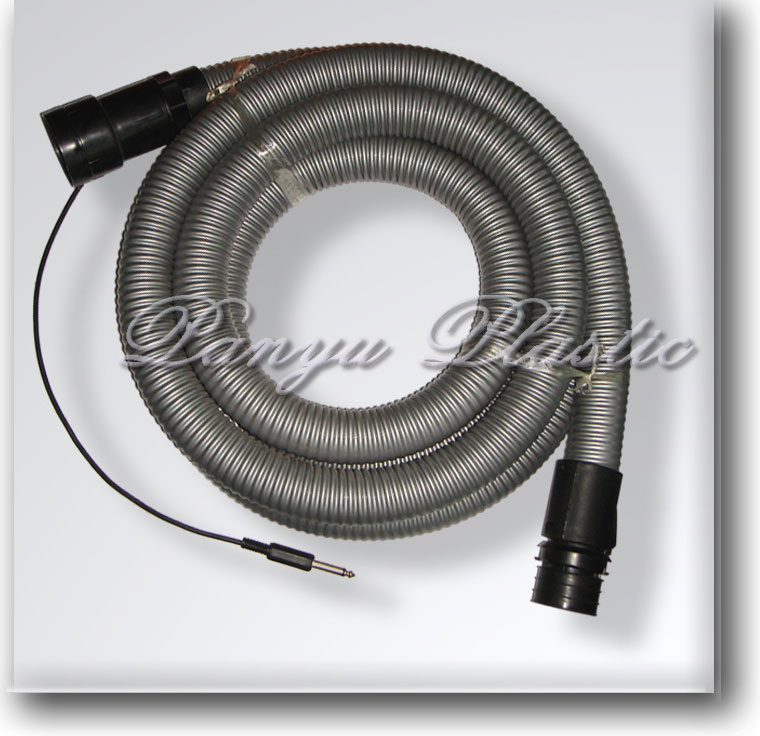

Conductive vacuum hose
Product name
Type
Material
Hose
ID/OD
Wire Diameter
Voltage
Joint ID
Hose ID
Conductive vacuum hose
PY-X7
PVC¡¢ABS
plastic rib reinforced hose
Φ30.5/Φ37
Φ4.0
220¡«240V
Φ53
Φ38.5
Characteristics: This is conductive vacuum hose; on the hose, there is a power switch for user to easily control the electricity. The hose is plastic rib reinforced that has features like light weight, good bending and anti-deformation etc. It is applicable to domestic and industrial vacuum cleaners, industrial dust cleaning system and so on; color and size can be customized.

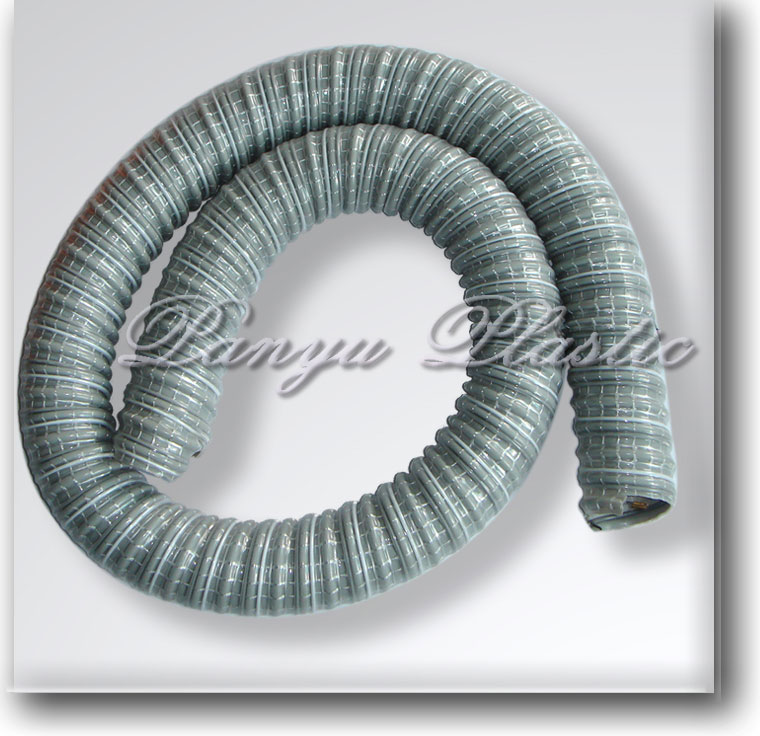

Double steel wires reinforced conductive hose
Product Name
Type
Material
ID/Thickness
Rib Diameter/QTY
Wire Diameter/QTY
Voltage
Double steel wires reinforced conductive hose
PY-X51
PVC¡¢steel wire, polyester yarn
Φ38/3
Φ2.0/2
Φ1.2/2
High or low voltage is optional
Characteristics: PVC-coated steel wire reinforced conductive hose uses transparent PVC material for its outer layer which can easily identify the wire status. The interlayer enhanced by polyester yarn has excellent tensile capacity, insulation capability and flexibility. It can be used on domestic and industrial vacuum cleaners, (central) vacuum cleaners, ventilation pipe systems; industrial dust removal system etc; color and size can be customized according to specifications.
