| Washing Machine Drain Hoses |
 |
| PY-P5ST |
|
 |
| PY-P5QO |
|
 |
| PY-P3KN |
|
 |
| PY-P2AA |
|
 |
| PY-P5UV |
|
 |
| PY-P2AF |
|
 |
| PY-P4NJ |
|
 |
| PY-P5PR |
|
| Washer Drain Hose, overflow hose | |
| Product name |
Type |
Material |
ID |
OD |
Thread distance |
Working pressure |
Color |
|
Drain Hose
|
PY-P2
|
PP or PE |
Φ8 |
Φ12 |
2.4 |
0¡«5bar |
GREY, BLUE |
|
Drain Hose
|
PY-P3
|
Φ12.5 |
Φ18 |
3.3 |
|
Drain Hose
|
PY-P4
|
Φ15 |
Φ21 |
3.4 |
|
Drain Hose
|
PY-P5
|
Φ19.5 |
Φ24 |
2.1 |
|

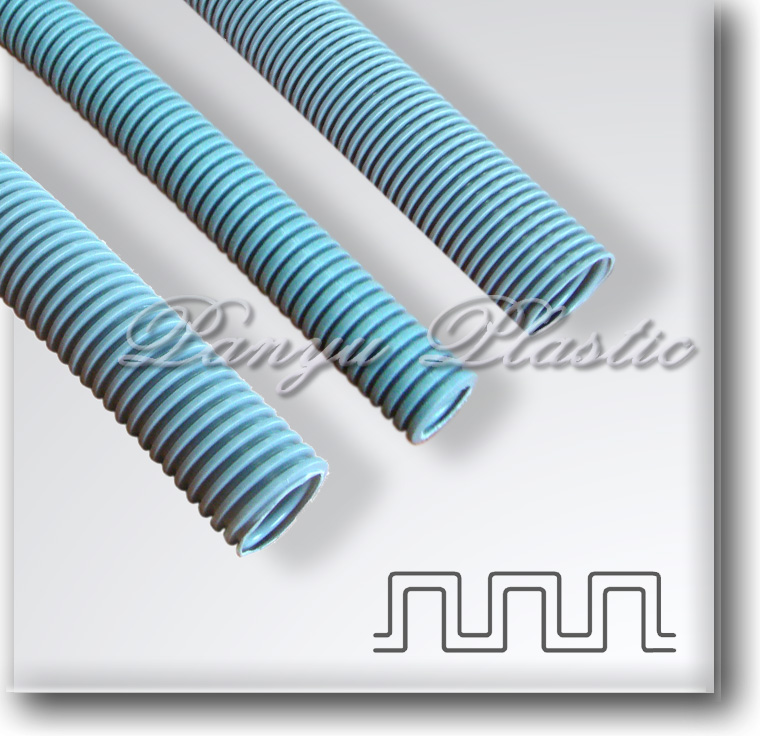

Characteristics: These are single-walled corrugated hose with features such as reasonable structure, light weight, sufficient compression strength and impact strength, also good flexibility; They can be applied to household and industrial equipment such as washing machine and dishwashers. Color and size can be customized according to customer specifications.
| |
 | |
| PP corrugated hoses' connectors | |
| Hose DiameterΦ8/Φ12(PY-P2) |
 |
 |
 |
 |
| A-type connector£¨Φ9£© |
B-type connector£¨Φ9£© |
C-type connector£¨Φ9£© |
D-type connector£¨Φ9£© |
 |
 |
 |
|
| E-type connector£¨Φ8£© |
F-type connector£¨Φ8£© |
G-type connector£¨Φ10£© |
|
| Hose DiameterΦ12.5/Φ18(PY-P3) |
 |
 |
 |
 |
| H-type connector£¨Φ19£© |
I-type connector£¨Φ21£© |
J-type connector£¨Φ16£© |
K-type connector£¨Φ23.5£© |
 |
|
|
|
| N-type connector£¨Φ16£© |
|
|
|
| Hose DiameterΦ15/Φ21(PY-P4) |
 |
 |
 |
|
| L-type connector£¨Φ13£© |
M-type connector£¨Φ16£© |
O-type connector£¨Φ19£© |
|
|
|
|
|
|
|
|
|
| Hose DiameterΦ19.5/Φ24(PY-P5) |
 |
 |
 |
 |
| O-type connector£¨Φ19£© |
P-type connector£¨Φ20.5£© |
Q-type connector£¨Φ21£© |
R-type connector£¨Φ31£© |
 |
 |
 |
 |
| S-type connector£¨Φ20.5£© |
W-type connector£¨Φ20.5£© |
T-type connector£¨5/8" 3/4" 1"£© |
U-type connector£¨Φ31£© |
 |
 |
 |
 |
| V-type connector£¨Φ20.5£© |
X-type connector£¨Φ32.5£© |
Y-type connector£¨Φ20£© |
Z-type-connector£¨Φ25£© |
 |
|
|
|
| ¢ò-Type-connector(¦Õ46) |
|
|
|
| Remarks£º |
1¡¢The connectors' specifications are inner diameter. |
| |
2¡¢The same specification hose's two ends can be arbitrary matched. |
| |
3¡¢Product type is drain hose type+ connector type, for example, PY-P2 hose+ A connector+ B connector; the finished product type will be PY-P2AB | | |
| Washing machine drain hoses | |
| PRODUCT NAME |
TYPE |
MATERIAL |
ID |
OD |
THREAD DISTANCE |
JOINT ID |
JOINT ID |
|
Drain Hose Φ19/Φ25.5
|
PY-P21
|
EVA |
Φ19 |
Φ25.5 |
3.8 |
Φ23.5 |
Φ23.5 |
| Drain HoseΦ25/Φ30 |
PY-P25
|
Φ25 |
Φ30 |
3.4 |
Φ29 |
Φ25 |
|
Drain HoseΦ28/Φ34.5
|
PY-P28
|
Φ28 |
Φ34.5 |
3.3 |
Φ28 |
Φ29 |
|
Features: Products are single-walled corrugated hose, well-structured, soft, light weight, good flexibility, mobility and good toughness; They can be applied in drainage systems for household and industrial equipment. Color and size can be customized according to customer specifications.
| |
 |
| PY-P21 | | |
 |
 |
|
| PY-P25 |
PY-P28 |
| |
| |
| | |
If you would like this product inquiries, please click: |
|
|
|
 |
|
